Android ViewModel - 4 (Activity Fragment ViewModel 공유)

아래 영상에서 강의로 보실 수 있습니다.



https://www.inflearn.com/course/친절한-jetpack-1?inst=3b988560

[중급편] 친절한 JETPACK 개론 <상> (Android Kotlin) - 인프런 | 강의



 Android에서 Activity와 Fragment의 ViewModel 공유 방법에 대해서 알아보겠습니다.

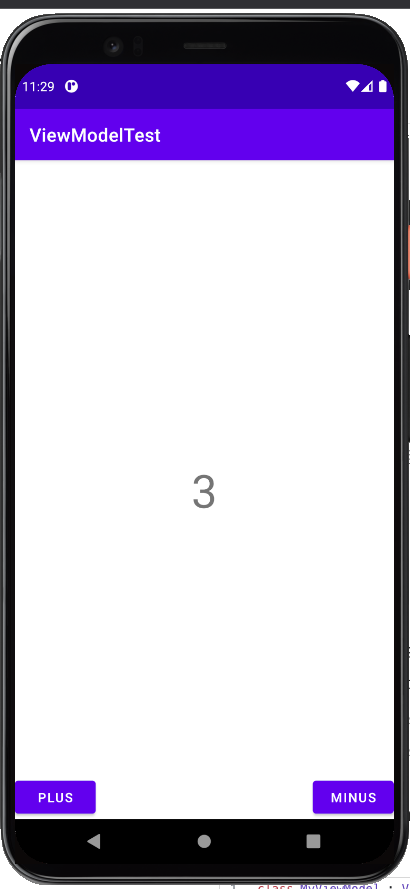

 우선은 아까 만들었던 Activity와 ViewModel을 그대로 만들어보겠습니다.



	class MainActivity : AppCompatActivity() {
	private val TAG = MainActivity::class.java.simpleName
	lateinit var binding : ActivityMainBinding
	lateinit var viewModel : MainViewModel
	override fun onCreate(savedInstanceState: Bundle?) {
	super.onCreate(savedInstanceState)
	binding = DataBindingUtil.setContentView(this, R.layout.activity_main)
	viewModel = ViewModelProvider(this).get(MainViewModel::class.java)
	binding.countShowArea.text = viewModel.countValue.toString()
	binding.plusBtn.setOnClickListener {
	viewModel.countValue++
	binding.countShowArea.text = viewModel.countValue.toString()
	}
	binding.minusBtn.setOnClickListener {
	viewModel.countValue--
	binding.countShowArea.text = viewModel.countValue.toString()
	}
	}
	}

view raw MainActivity.kt hosted with ❤ by GitHub

	<?xml version="1.0" encoding="utf-8"?>
	<layout
	xmlns:android="http://schemas.android.com/apk/res/android"
	xmlns:app="http://schemas.android.com/apk/res-auto"
	xmlns:tools="http://schemas.android.com/tools">
	<androidx.constraintlayout.widget.ConstraintLayout
	android:layout_width="match_parent"
	android:layout_height="match_parent"
	tools:context=".MainActivity">
	<TextView
	android:id="@+id/countShowArea"
	android:textSize="50sp"
	android:text="0"
	android:layout_width="wrap_content"
	android:layout_height="wrap_content"
	app:layout_constraintBottom_toBottomOf="parent"
	app:layout_constraintLeft_toLeftOf="parent"
	app:layout_constraintRight_toRightOf="parent"
	app:layout_constraintTop_toTopOf="parent" />
	<Button
	android:id="@+id/plusBtn"
	android:layout_width="wrap_content"
	android:layout_height="wrap_content"
	android:text="plus"
	app:layout_constraintBottom_toBottomOf="parent"
	app:layout_constraintStart_toStartOf="parent" />
	<Button
	android:id="@+id/minusBtn"
	android:layout_width="wrap_content"
	android:layout_height="wrap_content"
	android:text="minus"
	app:layout_constraintBottom_toBottomOf="parent"
	app:layout_constraintEnd_toEndOf="parent"
	/>
	</androidx.constraintlayout.widget.ConstraintLayout>
	</layout>

view raw activity_main.xml hosted with ❤ by GitHub





 여기에서 중앙에 Fragment를 추가해주고, Fragment와 Activity를 ViewModel을 이용해서 공유해주는 방법을 사용해보겠습니다.

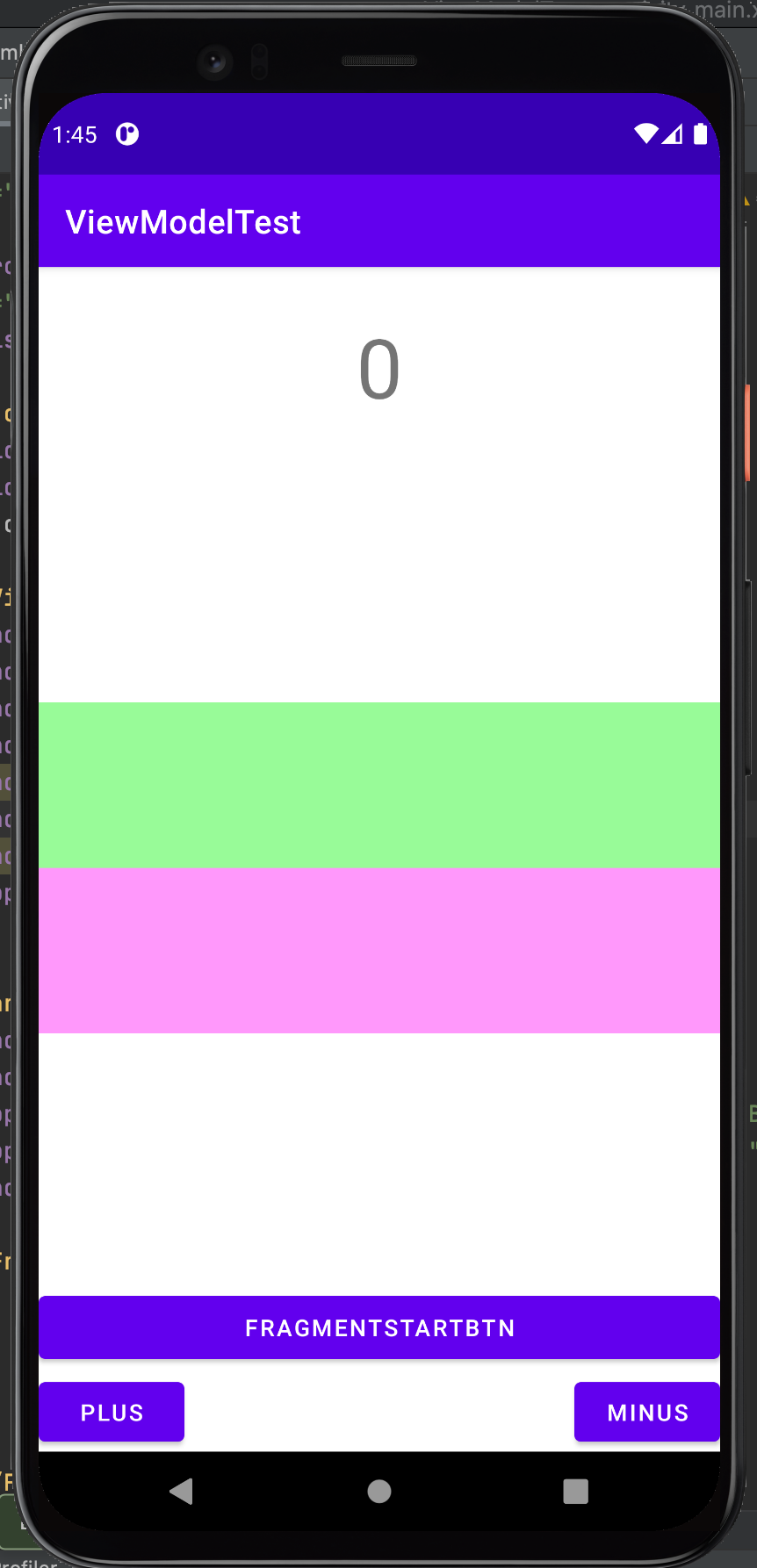

 아래와 같이 Fragment가 들어갈 영역을 만들고, Fragment가 실행되는 버튼을 만들어 줬습니다.



	class MainActivity : AppCompatActivity() {
	private val TAG = MainActivity::class.java.simpleName
	lateinit var binding : ActivityMainBinding
	lateinit var viewModel : MainViewModel
	val manager = supportFragmentManager
	override fun onCreate(savedInstanceState: Bundle?) {
	super.onCreate(savedInstanceState)
	binding = DataBindingUtil.setContentView(this, R.layout.activity_main)
	viewModel = ViewModelProvider(this).get(MainViewModel::class.java)
	binding.countShowArea.text = viewModel.countValue.toString()
	binding.fragmentStartBtn.setOnClickListener {
	val transaction1 = manager.beginTransaction()
	val fragment1 = BlankFragment1()
	transaction1.replace(R.id.fragment1Area, fragment1)
	transaction1.addToBackStack(null)
	transaction1.commit()
	val transaction2 = manager.beginTransaction()
	val fragment2 = BlankFragment1()
	transaction2.replace(R.id.fragment2Area, fragment2)
	transaction2.addToBackStack(null)
	transaction2.commit()
	}
	binding.plusBtn.setOnClickListener {
	viewModel.countValue++
	binding.countShowArea.text = viewModel.countValue.toString()
	}
	binding.minusBtn.setOnClickListener {
	viewModel.countValue--
	binding.countShowArea.text = viewModel.countValue.toString()
	}
	}
	}

view raw MainActivity.kt hosted with ❤ by GitHub

	<?xml version="1.0" encoding="utf-8"?>
	<layout
	xmlns:android="http://schemas.android.com/apk/res/android"
	xmlns:app="http://schemas.android.com/apk/res-auto"
	xmlns:tools="http://schemas.android.com/tools">
	<androidx.constraintlayout.widget.ConstraintLayout
	android:layout_width="match_parent"
	android:layout_height="match_parent"
	tools:context=".MainActivity">
	<TextView
	android:id="@+id/countShowArea"
	android:layout_width="match_parent"
	android:layout_height="100dp"
	android:layout_marginTop="10dp"
	android:textSize="50dp"
	android:gravity="center"
	android:text="0"
	app:layout_constraintTop_toTopOf="parent" />
	<LinearLayout
	android:layout_width="match_parent"
	android:layout_height="200dp"
	app:layout_constraintBottom_toTopOf="@+id/fragmentStartBtn"
	app:layout_constraintTop_toBottomOf="@+id/countShowArea"
	android:orientation="vertical">
	<FrameLayout
	android:id="@+id/fragment1Area"
	android:background="#FF98FB98"
	android:layout_width="match_parent"
	android:layout_height="100dp">
	</FrameLayout>
	<FrameLayout
	android:id="@+id/fragment2Area"
	android:background="#FF98FB"
	android:layout_width="match_parent"
	android:layout_height="100dp">
	</FrameLayout>
	</LinearLayout>
	<Button
	android:text="FragmentStartBtn"
	android:id="@+id/fragmentStartBtn"
	android:layout_width="match_parent"
	android:layout_height="50dp"
	android:layout_marginBottom="50dp"
	app:layout_constraintBottom_toBottomOf="parent" />
	<Button
	android:id="@+id/plusBtn"
	android:layout_width="wrap_content"
	android:layout_height="wrap_content"
	android:text="plus"
	app:layout_constraintBottom_toBottomOf="parent"
	app:layout_constraintStart_toStartOf="parent" />
	<Button
	android:id="@+id/minusBtn"
	android:layout_width="wrap_content"
	android:layout_height="wrap_content"
	android:text="minus"
	app:layout_constraintBottom_toBottomOf="parent"
	app:layout_constraintEnd_toEndOf="parent"
	/>
	</androidx.constraintlayout.widget.ConstraintLayout>
	</layout>

view raw activity_main.xml hosted with ❤ by GitHub



 자, 이 부분에서 MainViewModel에 있는 값을 BlankFragment1, BlankFragment2와 공유해주도록 해보겠습니다.



 일단 MainActivity에는 MainViewModel의 값을 PLUS MINUS 버튼을 통해 조작할 수 있으니, Fragment에서도 조작하도록 해보겠습니다.



 BlankFragment1과

 BlankFragment2의



 레이아웃을 아래와 같이 작성했습니다.



	<?xml version="1.0" encoding="utf-8"?>
	<layout
	xmlns:android="http://schemas.android.com/apk/res/android"
	xmlns:tools="http://schemas.android.com/tools">
	<FrameLayout
	android:layout_width="match_parent"
	android:layout_height="match_parent"
	tools:context=".BlankFragment1">
	<LinearLayout
	android:layout_width="match_parent"
	android:layout_height="wrap_content"
	android:orientation="vertical">
	<TextView
	android:id="@+id/fragment2TextArea"
	android:layout_width="match_parent"
	android:layout_height="match_parent"
	android:textSize="30dp"
	android:text="0" />
	<Button
	android:id="@+id/fragment2Btn1"
	android:text="+"
	android:layout_width="wrap_content"
	android:layout_height="wrap_content"/>
	<Button
	android:id="@+id/fragment2Btn2"
	android:text="-"
	android:layout_width="wrap_content"
	android:layout_height="wrap_content"/>
	</LinearLayout>
	</FrameLayout>
	</layout>

view raw fragment_blank1.xml hosted with ❤ by GitHub

	<?xml version="1.0" encoding="utf-8"?>
	<layout
	xmlns:android="http://schemas.android.com/apk/res/android"
	xmlns:tools="http://schemas.android.com/tools">
	<FrameLayout
	android:layout_width="match_parent"
	android:layout_height="match_parent"
	tools:context=".BlankFragment2">
	<LinearLayout
	android:layout_width="match_parent"
	android:layout_height="wrap_content"
	android:orientation="vertical">
	<TextView
	android:id="@+id/fragment2TextArea"
	android:layout_width="match_parent"
	android:layout_height="match_parent"
	android:textSize="30dp"
	android:text="0" />
	<Button
	android:id="@+id/fragment2Btn1"
	android:text="+"
	android:layout_width="wrap_content"
	android:layout_height="wrap_content"/>
	<Button
	android:id="@+id/fragment2Btn2"
	android:text="-"
	android:layout_width="wrap_content"
	android:layout_height="wrap_content"/>
	</LinearLayout>
	</FrameLayout>
	</layout>

view raw fragment_blank2.xml hosted with ❤ by GitHub



 그리고  BlankFragment1과 BlankFragment2의 코드를 아래와 같이 작성했습니다.



	class BlankFragment1 : Fragment() {
	private val TAG = BlankFragment1::class.java.simpleName
	lateinit var binding : FragmentBlank1Binding
	lateinit var viewModel : MainViewModel
	override fun onCreate(savedInstanceState: Bundle?) {
	super.onCreate(savedInstanceState)
	}
	override fun onCreateView(inflater: LayoutInflater, container: ViewGroup?, savedInstanceState: Bundle?, ): View? {
	binding = DataBindingUtil.inflate(inflater, R.layout.fragment_blank1, container, false)
	viewModel = ViewModelProvider(requireActivity()).get(MainViewModel::class.java)
	binding.fragment2TextArea.text = viewModel.countValue.toString()
	binding.fragment2Btn1.setOnClickListener {
	viewModel.countValue++
	}
	binding.fragment2Btn2.setOnClickListener {
	viewModel.countValue--
	}
	return binding.root
	}
	}

view raw BlankFragment1.kt hosted with ❤ by GitHub

	class BlankFragment2 : Fragment() {
	private val TAG = BlankFragment2::class.java.simpleName
	lateinit var binding : FragmentBlank2Binding
	lateinit var viewModel : MainViewModel
	override fun onCreate(savedInstanceState: Bundle?) {
	super.onCreate(savedInstanceState)
	}
	override fun onCreateView(
	inflater: LayoutInflater, container: ViewGroup?,
	savedInstanceState: Bundle?,
	): View? {
	binding = DataBindingUtil.inflate(inflater, R.layout.fragment_blank2, container, false)
	viewModel = ViewModelProvider(requireActivity()).get(MainViewModel::class.java)
	binding.fragment2TextArea.text = viewModel.countValue.toString()
	binding.fragment2Btn1.setOnClickListener {
	viewModel.countValue++
	}
	binding.fragment2Btn2.setOnClickListener {
	viewModel.countValue--
	}
	return inflater.inflate(R.layout.fragment_blank2, container, false)
	}
	}

view raw BlankFragment2.kt hosted with ❤ by GitHub



 이렇게 하면, Fragment와 Activity간에 ViewModel의 데이터 공유를 할 수 있는 것을 볼 수 있습니다.





아래 영상에서 강의로 보실 수 있습니다.



https://www.inflearn.com/course/친절한-jetpack-1?inst=3b988560

[중급편] 친절한 JETPACK 개론 <상> (Android Kotlin) - 인프런 | 강의





 -- 참조



https://developer.android.com/codelabs/basic-android-kotlin-training-shared-viewmodel#9
